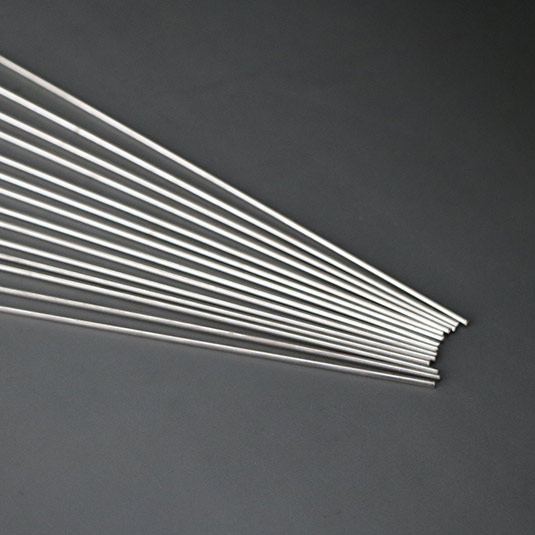

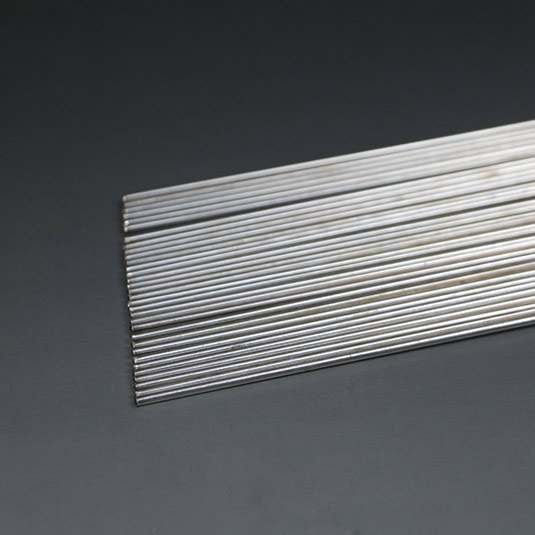

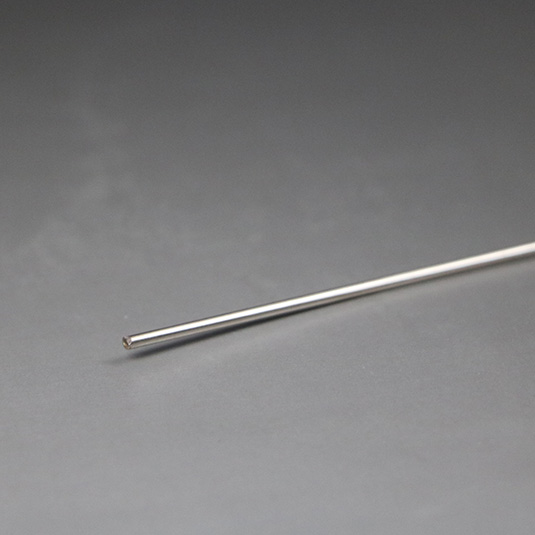

Silver-Copper-Zinc-Tin Brazing Alloy

It can be used for brazing all ferrous and non-ferrous metals except aluminum, magnesium, and low melting point metal.It is suitable for brazing copper and copper alloy, kinds of steeling parts, Bondi steel pipe with copper pipe, etc.

Share with:

 Introduction

The microstructure of silver brazing is silver or silver-based solid solution alloy. It is kind of high silver solder, it has perfect processing property, low melting point, good wettability and good ability to fill the gap, high joint strength, good plasticity, and good electrical conductivity and corrosion resistance. It can be used for brazing all ferrous and non-ferrous metals except aluminum, magnesium, and low melting point metal.It is suitable for brazing copper and copper alloy, kinds of steeling parts, Bondi steel pipe with copper pipe, etc.
Qixing Welding started in the 1980’s, we are the member of China Welding Association and Henan Welding Professional Committee Syndic Unit. Our company approved by ISO9001:2008 and ISO4001:2004, and all of the products meet SGS and ROHS directive requirements. We take more than 60-70% marketing shares in domestic, including the international famous companies, such as Midea Group and Gree Electric Appliances, Danfoss, Panasonic, LG, Samsung, etc.



 Technical Index

Code Related Standard Chemical Composition Melting Temperature
Ag %



Cu %



Zn %



Sn %



Solidus℃ Liquidus℃
JAg-18Sn CWA:BAg18CuZnSn DVS:Degussa1076 17.5-18.5 45-47 33-35 1.5-2.5 780 810
JAg-30Sn CWA: BAg30CuZnSn DVS: Degussa3076 29-31 35-37 31-33 1.5-2.5 650 750
JAg-40Sn CWA: BAg40CuZnSn DVS: Degussa4076 39-41 29-31 27-29 1.5-2.5 650 710
JAg-45Sn CWA: BAg45CuZnSn DVS: L-Ag45Sn 44-46 26-28 23-27 2.5-3.5 650 710
JAg-34Sn CWA:BAg34CuZnSn 33-35 35-37 25-29 2.5-3.5 630 730
JAg-25Sn CWA:BAg25CuZnSn AWS: BAg-37 24-26 39-41 31-35 1.5-2.5 688 779
JAg-56Sn CWA:BAg56CuZnSn
AWS:BAg-7
55-57 21-23 15-19 4.5-5.5 618 652

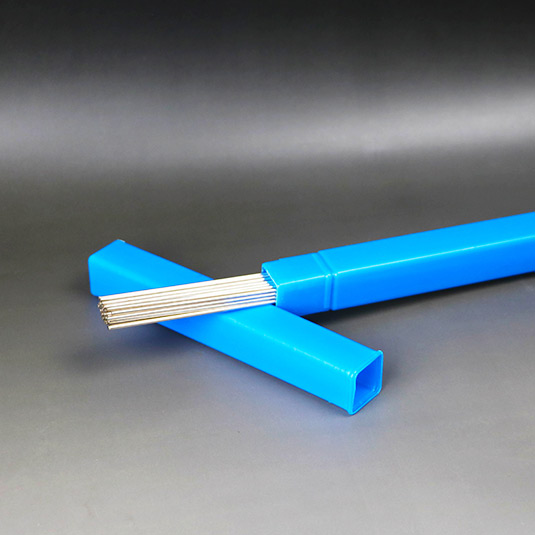

 Packaging

1. Diameter: 1.6/2.0/2.4/2.5mm; Length: 400/ 500/750mm;
2. Standard export seaworthy packing: with polyethylene film including drier, put them in carton; 1kg/box, 10/20kgs/carton box;
3. Based on the customer's different requirements, it can be customized.

 Note

1. AG: Silver; Cu: copper; Zn: Zinc; Ni: nickel; Sn: Stannum;
2. CWA: China welding association; AWS: America welding Society; DVS: German Welding Society;
3. MOQ( Minimum Order Quantity) is 50KG;
4. The price is based on the copper and silver price when you order, please contact us for the details.
